| Management number | 230384064 | Release Date | 2026/06/18 | List Price | $167.58 | Model Number | 230384064 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

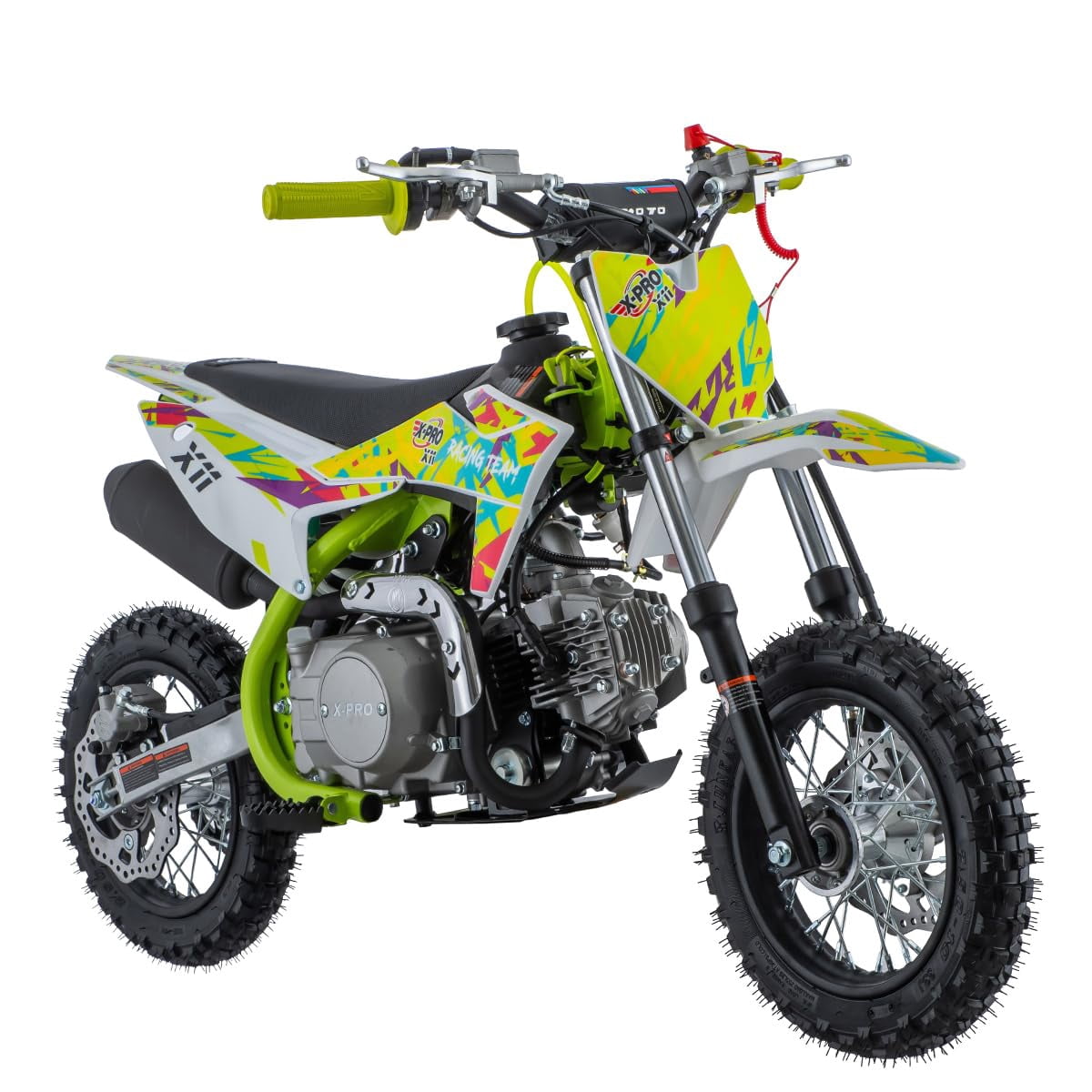

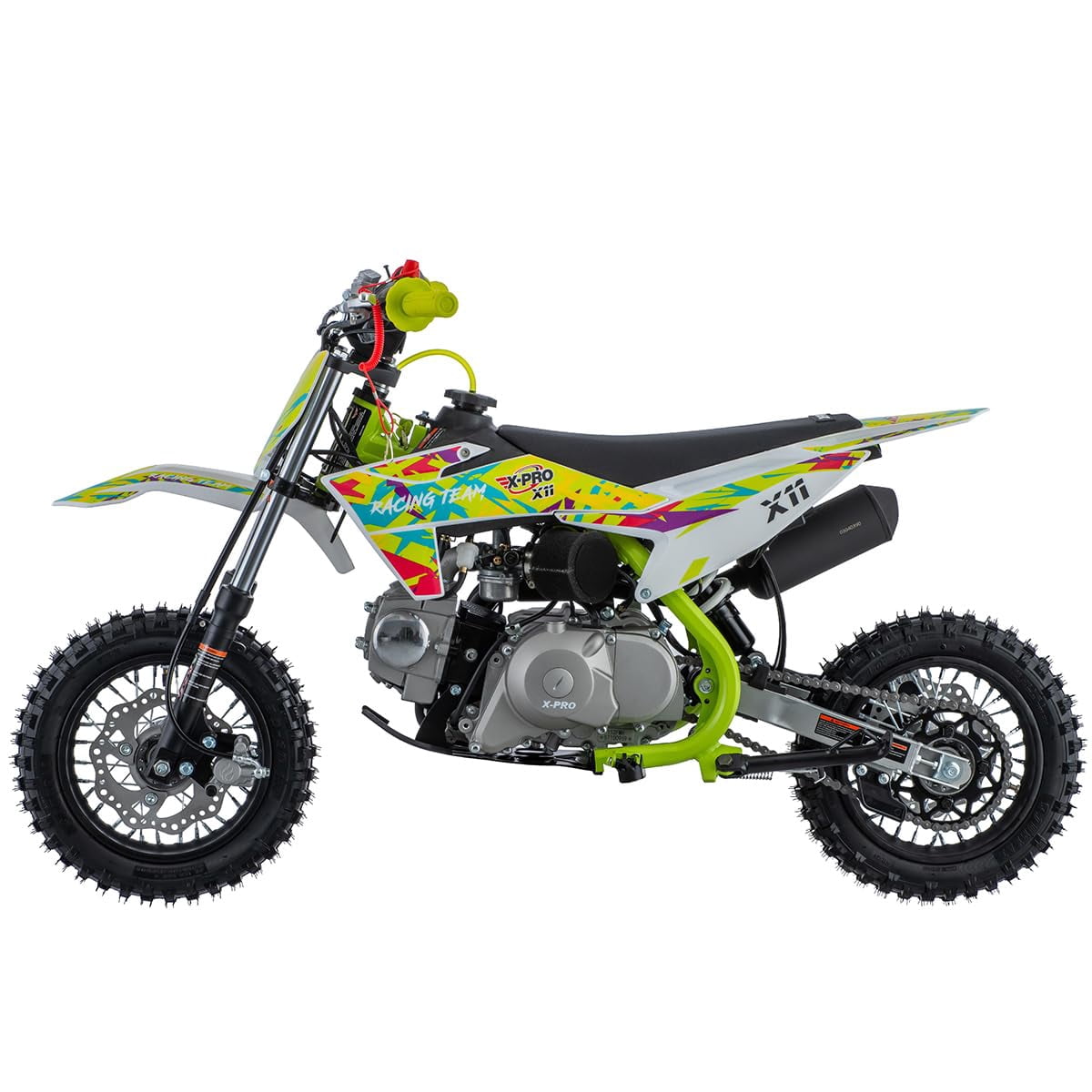

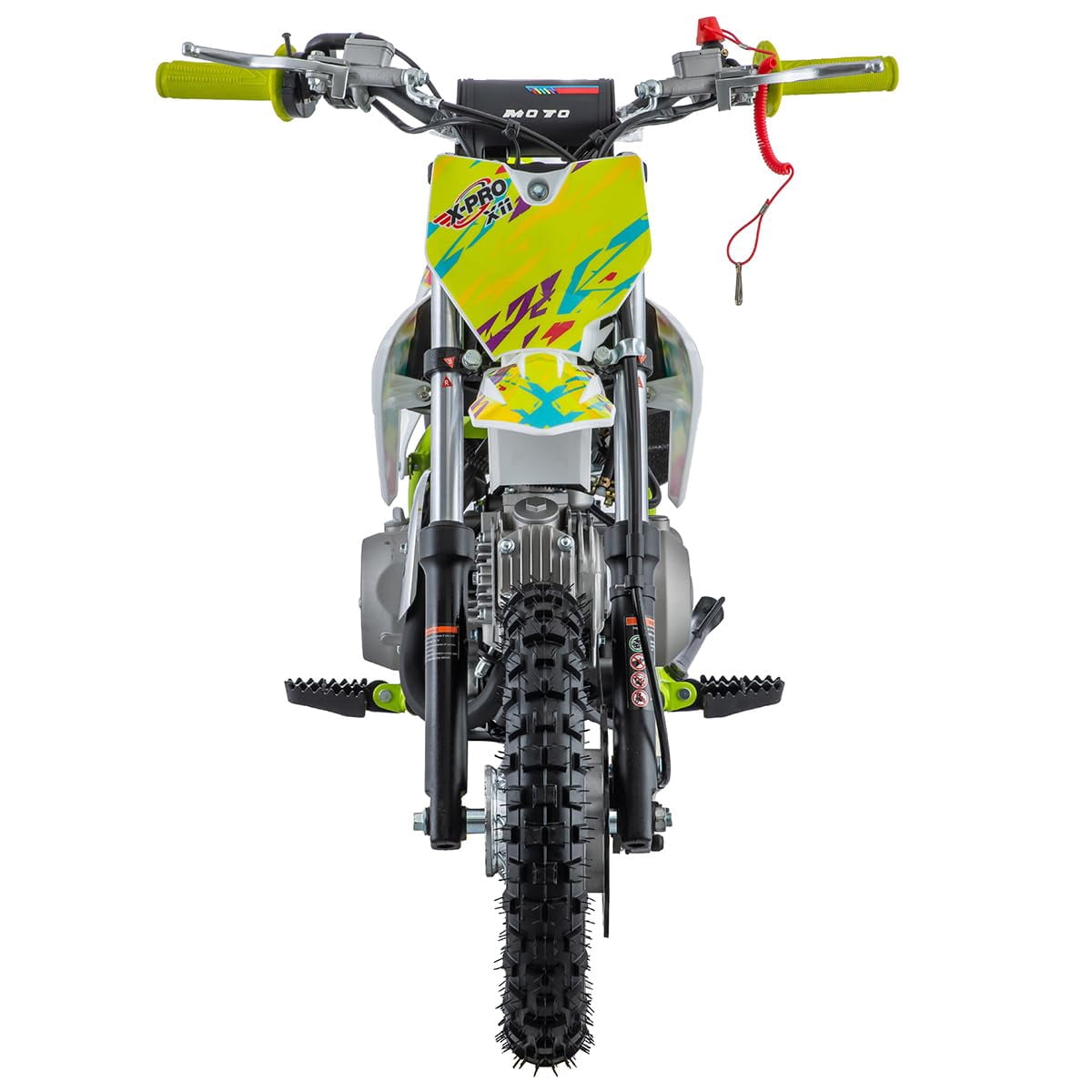

<b>Brand New Dirt Bike with Good Quality</b><br><b>This off-road dirtbike cannot be sold to California.</b><br><br> <b>Engine/Drive Train</b> <br>Engine: Zongshen Brand, 107cc, 4-Stroke<br>Cylinder Arrangement: Single<br>Cooling System: Air Cooled<br>Compression Ratio: 9.7:1<br>BorexStroke:Ф52.4×49.5mm<br>Max Power[Kw/r/m]: 5.0(1±10%)/8000(1±5%) kw/r/min<br>Max Torque[N.m/r/m]: 6.9 (1±10%)/6000(1±5%) N.m/r/min<br>Transmission: Automatic clutch, One gear<br>Start System: Electric start<br>Final Drive: #420 Chain, FT: 14T/RR: 39T Sprocket<br>Carburetor: PZ22 Jingke Carburetor<br>Ignition Type: C.D.I<br>Max Speed (MPH): 35 (Depending on Riders Weight and Conditions)<br>Battery: 12V4AH<br>Age Range: Suitable for teens and above<br><br><b> Frame / Body / Suspension / Brakes</b> <br>Frame: Cradle Type Steel Tube Frame<br>Front Suspension: Telescopic ¢27×550mm<br>Rear Suspension: 12*270mm None-Adjustable Shock<br>Front Disc: Hydraulic Single Piston Caliper, 190mm Disc<br>Rear Disc: Hydraulic Single Piston Caliper, 190mm Disc<br>Front Tire: 2.50-10"<br>Rear Tire: 2.50-10"<br>Exhaust/Pipe: Steel Pipe with catalyst converter(EPA)<br><b> Capacities / Dimensions</b> <br>Weight Capacity(lbs): 165<br>Gross Weight (lbs) :140<br>Net Weight (lbs): 113<br>Overall Length: 55.9"<br>Overall Width: 25.4"<br>Overall Height: 32.7"<br>Carton Dimension: 45 x 15 x 20"<br>Seat Height: 24.9"<br>Wheelbase: 39.6"<br>Ground Clearance: 7.7" <br>Fuel Capacity: 2.0L/0.53 Gal<br><br> <b>Safety / Control</b> <br>Engine Kill Switch: Yes <br>EPA: Yes<br>D.O.T Approved: Yes
| Brand | X-Pro |
|---|---|
| Vehicle model | DB-K003-Green |
| Engine displacement | 107 cc |
| Color | Green |
| Maximum speed | 35 mph |
| Horsepower | 5.0 HP |
| Seat height | 24.9 in |
| Fuel type | Gasoline |
| Transmission type | Automatic |
| Vehicle make | X-Pro |
| Ground clearance | 7.7 in |
| Max load | 165 lb |
| Torque | 7.5 Nm |
| Engine starter | Electric |
| Rec. use | Powersports |
| Front brakes | Hydraulic Single Piston Caliper, 190mm Disc |
| Rear brakes | Hydraulic Single Piston Caliper, 190mm Disc |
| Front suspension | Telescopic ¢27×550mm |
| Rear suspension | 12*270mm None-Adjustable Shock |
| Fuel system | Carburetion |
| Seating capacity | 1 |
| Vehicle type | Dirt Bike |
| Age group | Teen |
| Clutch type | Automatic |
| Automotive brake type | Disc Brakes, Hydraulic Brakes |
| Fuel capacity | 0.53 gal |
| Battery capacity | 12V |
| Dry weight | 113 lb |
| Curb weight | 140 lb |
| Wheelbase | 39.6 in |
| Ignition type | C.D.I |
| Front tires | 2.50-10" |
| Rear tires | 2.50-10" |
| Model | DB-K003-Green |
| Number of cylinders | 1 |
| Engine cylinder head type | Overhead Valve (OHV) |
| Valvetrain | Zongshen Brand, 107cc, 4-Stroke |
| Motorcycle frame type | Single Cradle Frame |
| Finish | Glossy |
| Bore x stroke | Ф52.4×49.5mm |
| Watts | 5000 Watts |
| Cooling system | Air Cooled |
| Compression ratio | 9.7:1 |
| Assembled product weight | 140 lb |
